Blanks for Die & Mold

Blanks for Die & Mold

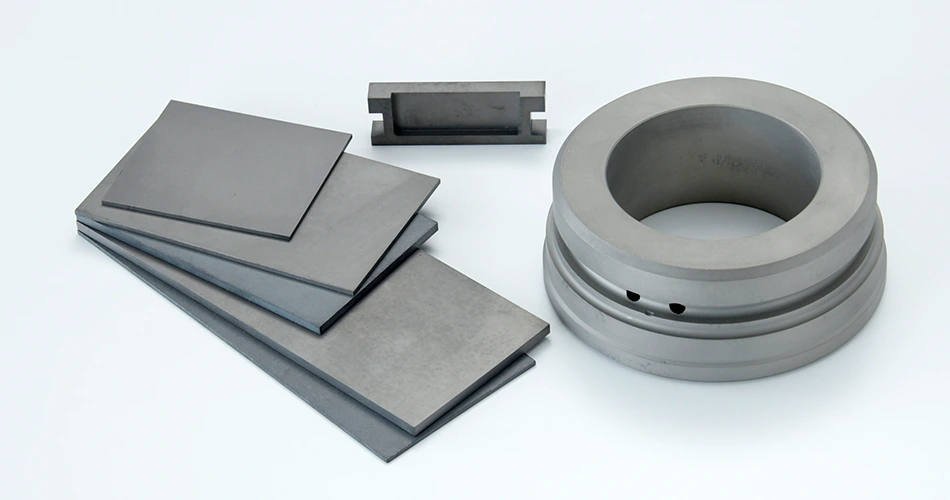

We provide stable and high-performance blanks for die & mold.

The Die & Mold demand increases with the expansion of the new technological products such as smartphones or tablets.
On the other hand, the performance enhancement of the Die & Mold Industry is pursued with miniaturization and the densification of molding materials.
We have many customers who utilize our carbide materials for die & mold including AF312 which shows stability and high efficiency.

Grade Properties

We have a lineup of grades that match the application of the mold.
For details, please refer to the technical information.

Swipe left or right
to see.

Scroll
Application Class ISO
code		 Grade Hardness HRA TRS
HRA Hv(GPa) (GPa)
General Grade for Die & Mold K grade K20 AF810 91.4 15.2 3.3
K40 AF813 90.4 13.6 3.5
Wear resistance --- AV106 92.4 16.7 2.1
--- AV207 90.9 15.0 3.0
--- AV210 89.8 13.7 3.2
--- AV212 89.0 13.1 3.3
--- AV215 87.8 11.9 3.3
--- AV320 84.5 9.3 3.0
--- AV325 83.0 8.2 2.9
Impact resistance --- AG408 89.0 12.9 2.8
--- AG410 87.7 11.8 2.8
--- AG411 87.0 11.2 2.8
--- AG416 85.5 10.2 2.7
Ultra micro grain --- AF312 92.5 17.3 4.4
Specifications of Grade for Special Type

Application / Grade Recommendations

Ultra micro grain

  • AF312

This is the ultra-micro-grain grade with WC 0.3 ㎛.
AF312 grade has the extremely high transverse rupture strength (TRS) and hardness which deliver a long tool life for precision dies & molds.

Fine grain

  • AF810
  • AF813

Recommended grades for punch / die material. They are a balanced grade of hardness and transverse rupture strength (TRS).

General grades for wear resistant tools

  • AV106
  • AV207
  • AV210
  • AV212
  • AV215
  • AV320
  • AV325

The above shows general carbide grades for wear resistant tools.Grades listed in order of highest abrasion resistance: AV106, AV207, AV210, AV212, and AV215.
Please choose the most suitable grade depending on your requirements.

Impact resistance

  • AG408
  • AG410
  • AG411
  • AG416

Material for dies that apply a large impact force such as cold forging. Please select the material based on the table below.

Swipe left or right
to see.

Scroll
Applicable Grades Press mold
Lead frame
(aluminum,Cupper)		 Connecter
(Blanking,Bending)
(Phosphor Bronze)		 Connecter
(Blanking,Bending)
(SUS)		 Motor
core
Classification Grade Punch Die Punch Die Punch Die Punch
・Die
Micro fine grain Fine grain AF810 ◎ ◎ ○ ◎
AF813 ○ ○ ○
Micro grain AF505 ○ ○
AF5085 ○ ○
AF513 ○ ○
Ultra micro grain AF308 ○ ○
AF312 ◎ ◎ ◎
AF209 ○ ○
Wear resistance --- AV106
--- AV207
--- AV210
--- AV212 ○
--- AV215 ○
--- AV320
--- AV325
Impact
resistant		 --- AG408
--- AG410
--- AG411
--- AG416

Swipe left or right
to see.

Scroll
Applicable Grades Plastic injection mold Powder
compacting mold		 Drawing
die &
plug		 Cold
forging
die
Classification Grade Pot Plunger Gate LF fixing
pin		 Punch Die
Micro fine grain Fine grain AF810 ◎ ◎
AF813 ○ ○
Micro grain AF505
AF5085
AF513
Ultra micro grain AF308
AF312
AF209
Wear resistance --- AV106 ○ ○ ○
--- AV207 ○ ○ ○ ○
--- AV210 ○
--- AV212 ○ ○ ○ ○
--- AV215 ○ ○ ○ ○
--- AV320 ○
--- AV325 ○
Impact
resistant		 --- AG408 ○
--- AG410 ○
--- AG411 ○
--- AG416 ○

Size Availability

Size Availability
Measurement (㎜) Tolerance
5 or less ±0.10㎜
over5 bellow 10 ±0.15㎜
over10 bellow 20 ±0.20㎜
over20 bellow 30 ±0.25㎜
over30 bellow 40 ±0.30㎜
over40 bellow 50 ±0.35㎜
over50 ±0.7%

Please use the above charts only as a guide.
Please contact us for the detail.
